A48y-64/100 spring full open steam safety valve product introduction
A48y-64/100 spring full open steam safety valve is suitable for working temperature "type C" ≤ 425 ℃; "Type I" ≤ 500 ℃; "V type" ≤ 500 ℃; Steam and other media equipment or pipelines play a role of safety protection in the system. When the system pressure exceeds the specified value, the safety valve is opened to discharge part of the gas / fluid in the system into the atmosphere / pipeline, so that the system pressure does not exceed the allowable value, so as to ensure that the system will not have accidents due to excessive pressure.

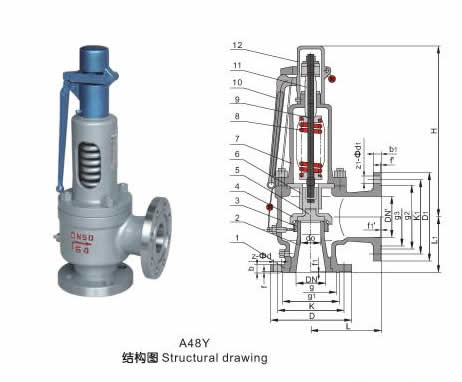

A48y-64/100 spring full open steam safety valve structure diagram
A48y-64/100 spring full open steam safety valve executive standard
Design Code: gb/t 12243
Structure length: gb/t 12221
Flange connection: jb/t 79
Test and inspection: gb/t 12242
Product identification: gb/t 12220
Supply specification: jb/t 7928
