Gb/t 587-2008 marine flanged bronze globe valves
性能规范 Technical Data
公称压力 Nominal Pressure(MPa) | 公称通径 Nominal Diameter(am) | 适用介质 Applicable Medium |
0.6 | 15~150 | 海水、淡水、滑油、燃油和 t≤250℃蒸汽 Sea water, Fresh water, Lubricanting oil, Fuel oil, t≤250℃ steam. |
1.0 | 65~150 | |
1.6 | 65~150 | |
2.5 | 15~125 |
主要零部件材质 Materials of Main Parts
零件名称 Parts Name | 材料 Material | |
名称 Name | 牌号 Marks | |
阀体、阀盖、阀盘 Body/Cover/Disc | 铸锡青铜 Cast Tin Bronze | ZCuSn10Zn2, ZCuSn5Pb5Zn5 |
阀杆 Stem | 铝青铜 Aluminum Bronze | CuA19Mn2 |

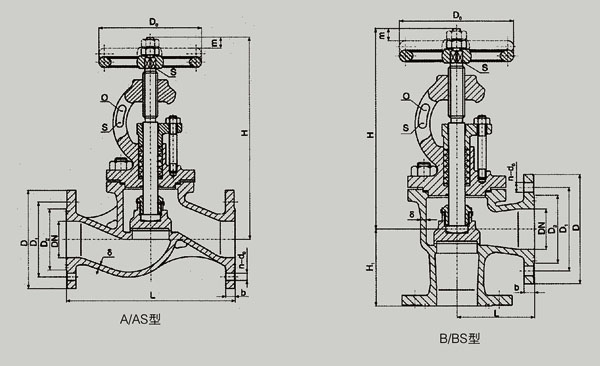

PN1.0、1.6、2.5MPa的A型、B型基本尺寸 Dimensions
公称 压力 PN (MPa) | 公称 通径 DN (mm) | 结构尺寸 Structure Dimension | 壁厚 Thickness | 法兰 Flange | 螺栓 Bolt | 手轮 Hand wheel | 升程 Lift Range m | 参考重量 Weight(kg) | |||||||||||
L | H≈ | H1 | |||||||||||||||||
A型 | B型 | A型 | B型 | B型 | D | D1 | D2 | d0 | b | n个 | Th | Do | S | A型 | B型 | ||||
1.0 | 65 | 290 | 115 | 309 | 275 | 115 | |||||||||||||
