DC plunger valve | u45sm flange DC plunger valve overview:
The biggest advantage of the main direct flow piston valve is that the medium flows in a balanced way with less turning corners. The straight through flow line is trapezoidal, the angular flow line is angular, and the straight through flow line is wavy. According to the measurement of the flow resistance coefficient of the three stop valves, the flow resistance coefficient of the straight through stop valve is 4.1, the flow resistance coefficient of the DN100mm angle stop valve is 3.8, and the flow resistance coefficient of the DN100mm straight through stop valve is 0.5, which greatly reduces the resistance.

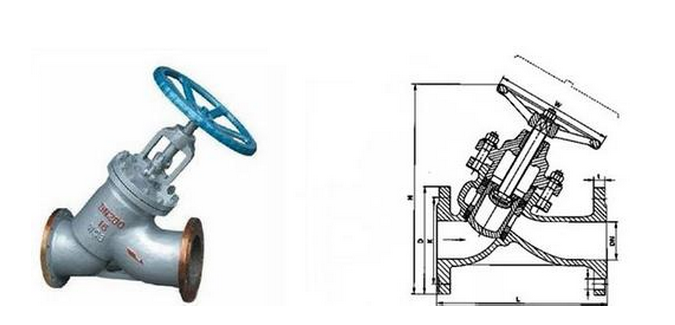

DC plunger valve | u45sm flange DC plunger valve connection and structural dimensions：
DN(mm) | U45SM-16C、P、R U45H-16C、P、R | |||||||||||||||
15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | |
L | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 622 | 698 | 787 | 914 |
H | 180 | 200 | 220 | 260 | 280 | 310 | 350 | 390 | 430 | 460 | 550 | 650 | 750 | 860 | 980 | 1110 |
W | 100 | 100 | 120 | 140 | 160 | 180 | 200 | 240 | 270 | 310 | 340 | 400 | 520 | 640 | 760 | 900 |
D | 95 | 105 | 115 | 135 | 145 | 160 | 180 | 195 | 215 | 245 | 280 | 335 | 405 | 460 | 520 | 580 |
K | 65 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 355 | 410 | 470 | 525 |
T | 12 | 12 | 12 | 12 | 13 | 13 | 12 | 17 | 17 | 19 | 21 | 23 | 27 | 28 | 30 | 32 |
n-φ | 4-14 | 4-14 | 4-14 | 4-18 | 4-18 | 4-18 | 4-18 | 8-18 | 8-18 | 8-18 | 8-23 | 12-23 | 12-25 | 12-25 | 16-25 | 16-30 |
DN(mm) | U45SM-25C、P、R U45H-25C、P、R | |||||||||||||||
15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | |
L | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 622 | 698 | 787 | 914 |
H | 180 | 200 | 220 | 260 | 280 | 310 | 350 | 390 | 430 | 470 | 550 | 650 | 750 | 860 | 990 | 1110 |
W | 100 | 100 | 120 | 140 | 160 | 180 | 200 | 240 | 280 | 310 | 340 | 400 | 520 | 640 | 760 | 900 |
D | 95 | 105 | 115 | 135 | 145 | 160 | 180 | 195 | 230 | 270 | 300 | 360 | 425 | 485 | 550 | 610 |
K | 65 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 190 | 220 | 250 | 310 | 370 | 430 | 490 | 550 |
T | 14 | 14 | 14 | 15 | 15 | 17 | 19 | 19 | 21 | 25 | 27 | 31 | 33 | 36 | 40 | 44 |
n-φ | 4-14 | 4-14 | 4-14 | 4-18 | 4-18 | 4-18 | 4-18 | 8-18 | 8-23 | 8-25 | 8-25 | 12-25 | 12-30 | 16-30 | 16-34 | 16-34 |
